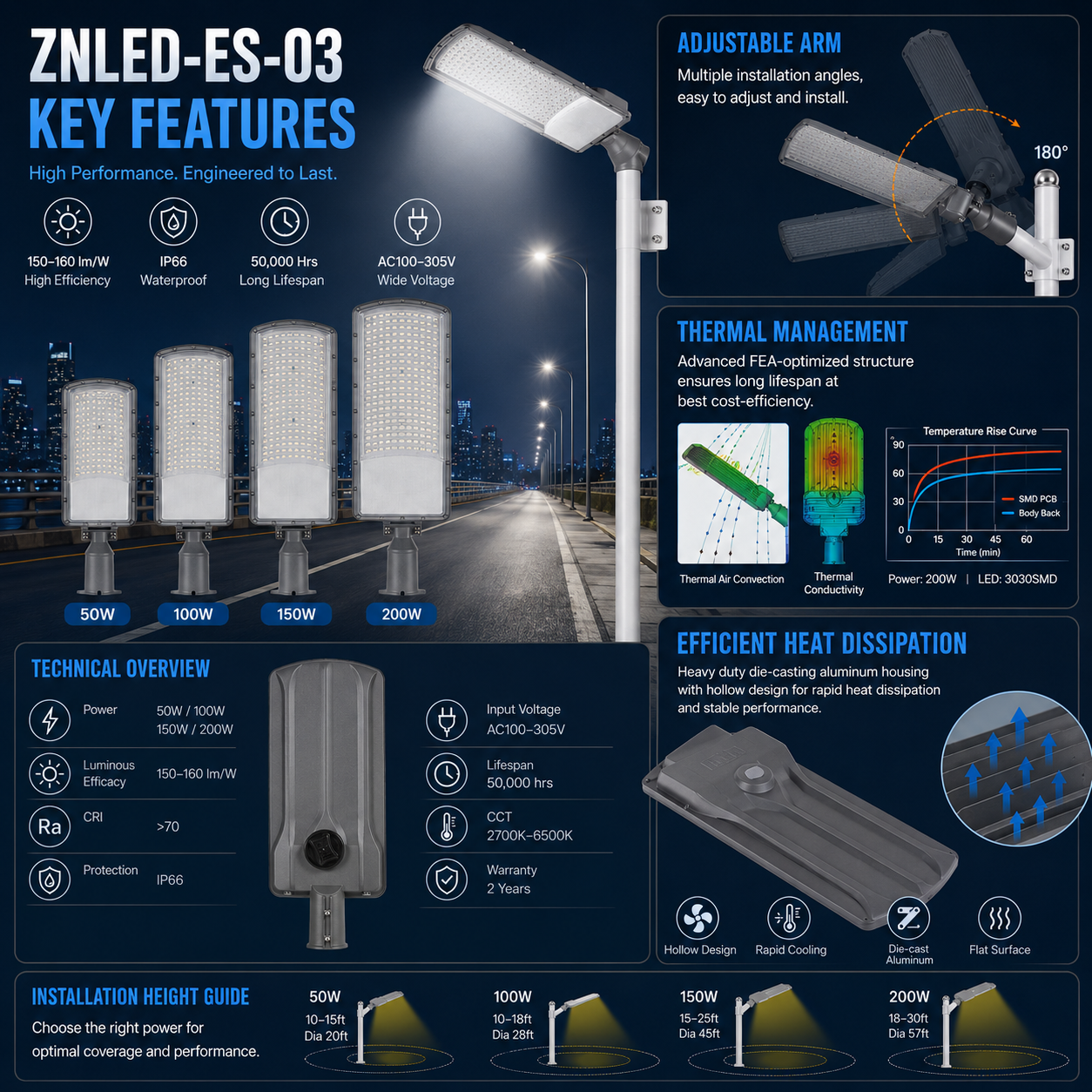

Key Features Overview
This image summarizes the main structure, installation angle, thermal management and product feature details of ZNLED-ES-03 for project buyers.
Cost-Effective LED Street Light

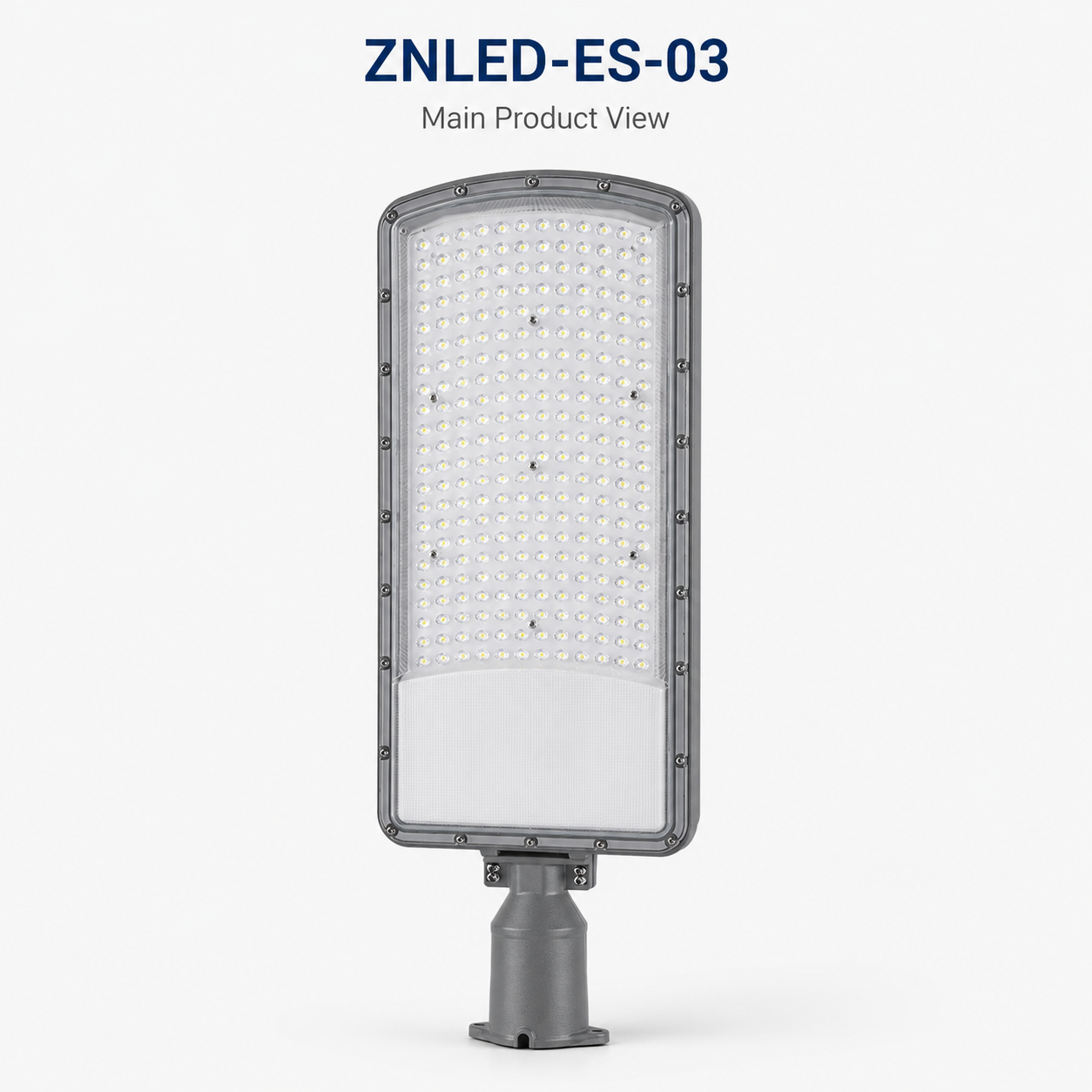

ZNLED-ES-03 LED Street Light for Cost-Effective Outdoor Road Lighting
Cost-effective outdoor LED road light for streets, parks, courtyards, communities, parking areas and general outdoor lighting projects.
ZNLED-ES-03 is designed for cost-effective outdoor lighting projects. With 50W to 200W power options, AC100–265V input, 120–140 lm/W luminous efficiency, IP66 waterproof grade and die-cast aluminum alloy + PC housing, it is suitable for distributors, contractors and project procurement buyers.
Key Selling Points
Practical Outdoor LED Road Light for Project Buyers
ZNLED-ES-03 focuses on practical project selection, stable outdoor performance and economical LED street lighting for B2B applications.
50W-200W Power Options
Four power options help match streets, courtyards, parks, communities and parking area lighting projects.
120–140 lm/W Luminous Efficiency
Practical light output supports cost-effective outdoor LED road lighting applications.
IP66 Waterproof Design
IP66 protection supports outdoor environments with rain, dust and long-term exposure.
Cost-Effective Outdoor Lighting Solution
Designed for practical project use where stable performance and economical selection are important.
Product Overview
Cost-Effective LED Street Light for Outdoor Project Lighting
ZNLED-ES-03 is an outdoor LED street light for roads, gardens, parks, community roads, courtyards, streets, parking areas and general outdoor project lighting. It is a grid-powered LED road light for practical engineering applications, not a solar street light. The product is suitable for wholesalers, contractors, municipal or community lighting projects and buyers who need economical model selection for bulk procurement.
Technical Data
Technical Specifications
The following HTML tables use visible text for SEO and project review. Final configuration can be checked again before formal quotation.
General Specifications
| Model | ZNLED-ES-03 |
|---|---|
| Product Name | ZNLED-ES-03 LED Street Light |
| Product Type | Outdoor LED Street Light / LED Road Light |
| Input Voltage | AC100–265V |
| LED Chip | Bridgelux SMD2835 / SMD3030 |
| Luminous Efficiency | 120–140 lm/W |
| Color Temperature | 2700–6500K |
| CRI | Ra >70 |
| Beam Angle | 75° × 165° |
| Waterproof Grade | IP66 |
| Power Factor | PF 0.98 |
| Housing Material | Die-cast Aluminum Alloy + PC |
| Warranty | 2 Years |
| Lamp Life | 50,000 hours |
| Working Temperature | -25°C to 45°C |
| Application | High-speed roads / gardens / roads / streets / courtyards / communities / parking areas / outdoor project lighting |
| Brand | ZANNOE |
Final configuration can be adjusted according to project requirements. Luminous efficiency may vary depending on LED chip, driver and project configuration.
Straight Arm Version
| Power | Product Size | Packing Size | Packing Quantity | Weight | LED Quantity |
|---|---|---|---|---|---|
| 50W | 380 × 145 × 75 mm | 78 × 31 × 37 cm | 20 pcs / carton | 14 kg | 72 pcs |
| 100W | 465 × 175 × 75 mm | 56 × 39 × 45.5 cm | 15 pcs / carton | 15 kg | 144 pcs |
| 150W | 572 × 215 × 75 mm | 45 × 45 × 57 cm | 10 pcs / carton | 14 kg | 216 pcs |
| 200W | 622 × 230 × 75 mm | 49 × 45 × 52 cm | 10 pcs / carton | 20 kg | 288 pcs |
Rotating Arm Version
| Power | Product Size | Packing Size | Packing Quantity | Weight | LED Quantity |
|---|---|---|---|---|---|
| 50W | 435 × 145 × 75 mm | 47 × 45 × 46 cm | 15 pcs / carton | 15 kg | 72 pcs |
| 100W | 515 × 175 × 75 mm | 54 × 38 × 54 cm | 12 pcs / carton | 14 kg | 144 pcs |
| 150W | 615 × 215 × 75 mm | 46 × 45 × 63 cm | 10 pcs / carton | 18 kg | 216 pcs |
| 200W | 660 × 230 × 75 mm | 49 × 45 × 68 cm | 10 pcs / carton | 24 kg | 288 pcs |
Product Details
Product Details
Key product details are shown with large technical images and visible HTML text to support project evaluation, supplier comparison and SEO readability.

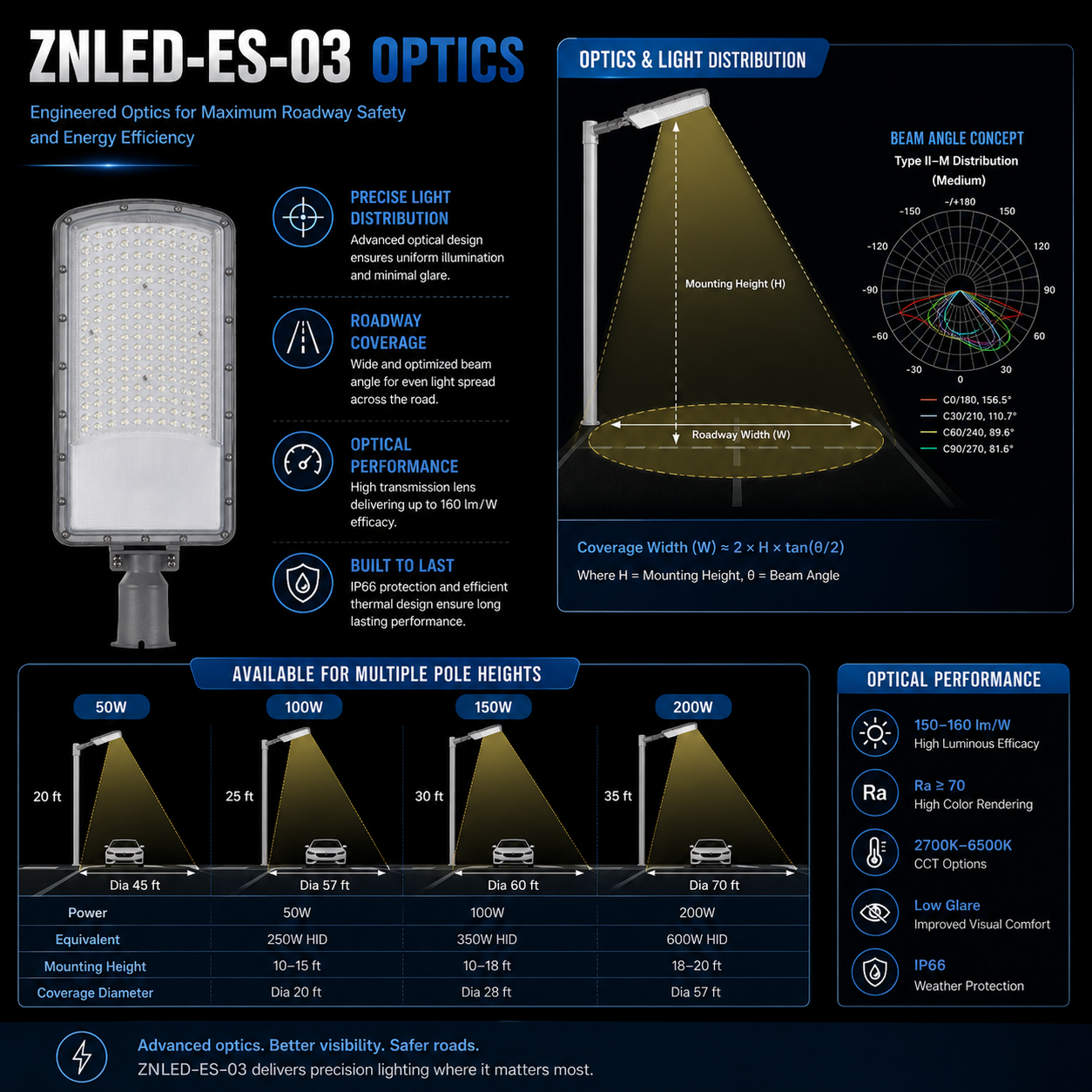

Optical Distribution Design
The optical design supports outdoor road, street, courtyard and community lighting applications with practical light distribution for project use.
Installation and Structure Details

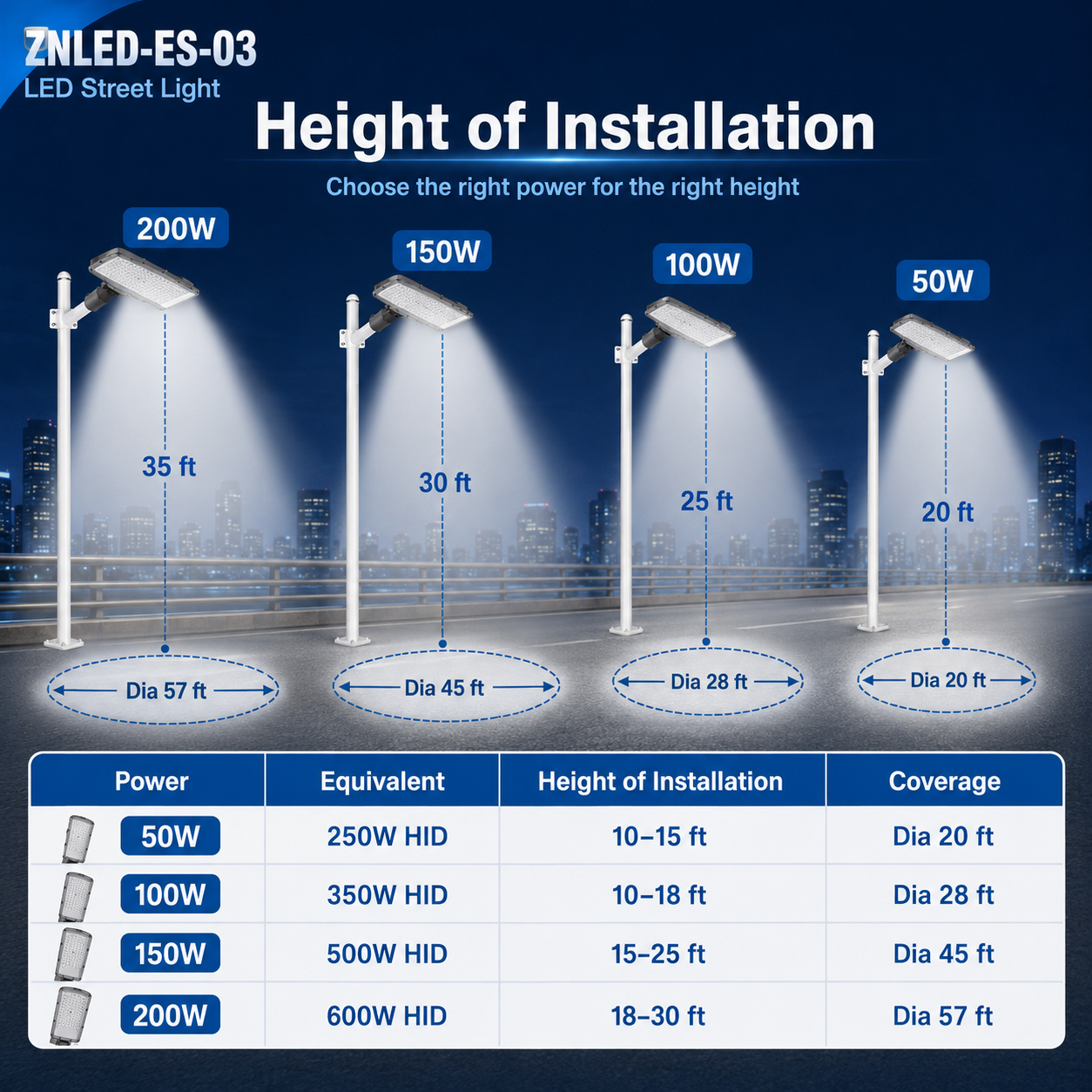

Installation Guide
The installation guide helps buyers review mounting direction, pole installation and project setup requirements before quotation.

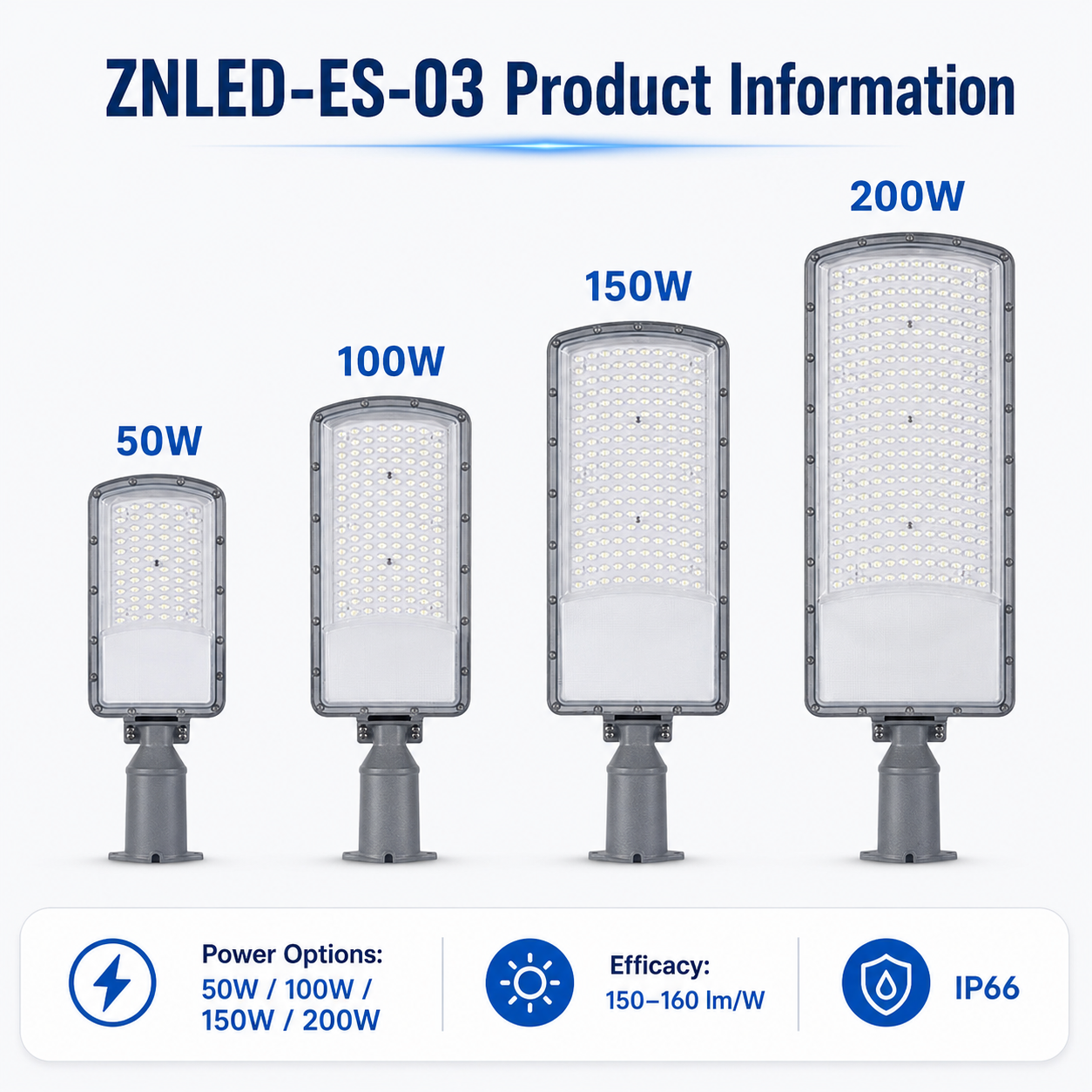

Straight Arm and Rotating Arm Options
Straight arm and rotating arm versions support different installation layouts and project requirements.

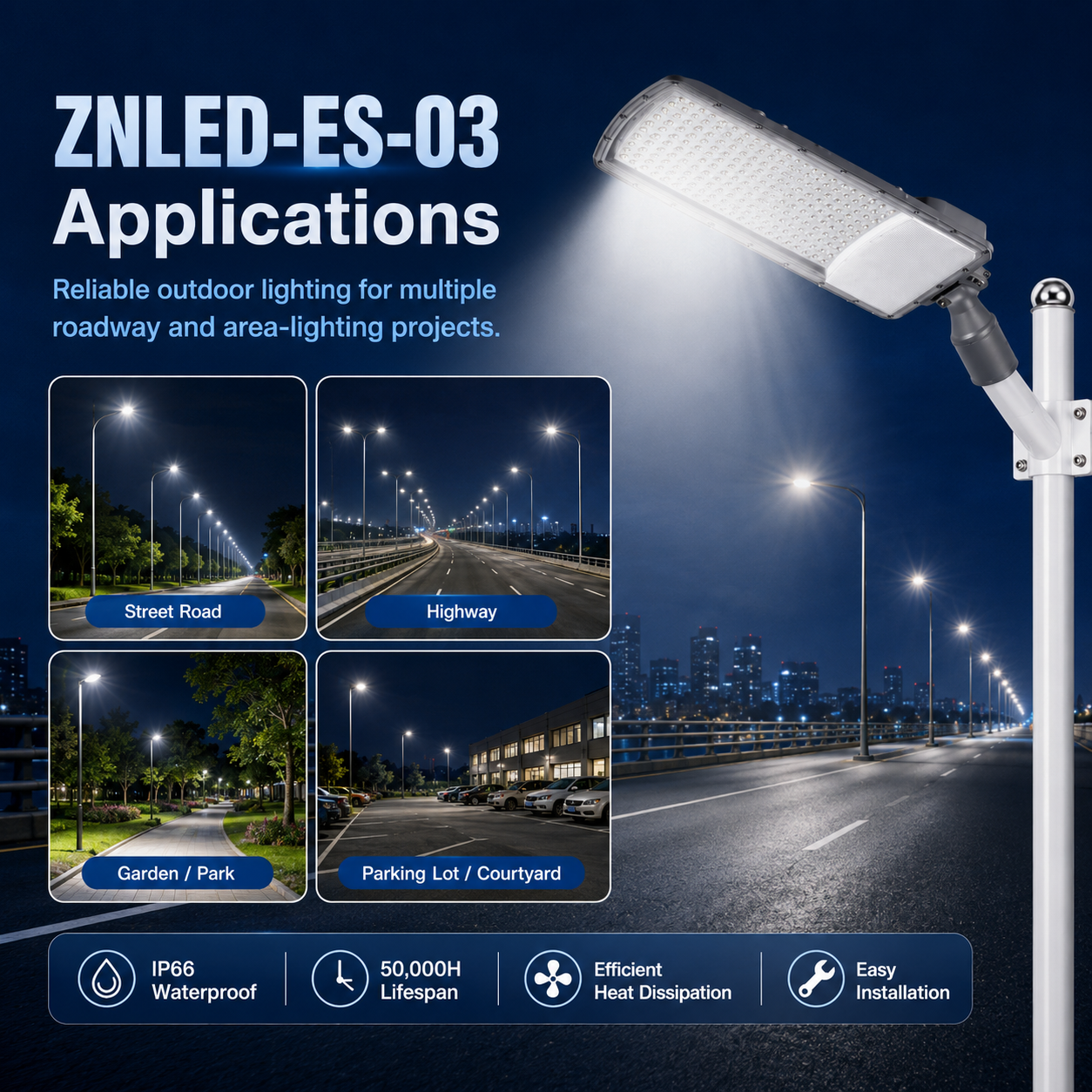

Applications
Application Scenarios
ZNLED-ES-03 LED street light supports cost-effective outdoor lighting applications for public, commercial and community project environments.
Streets
Gardens
Courtyards
Communities
Parking Areas
Parks
Roads
Outdoor Project Lighting
Project Advantages
Why Choose ZNLED-ES-03 for Your Lighting Project?
ZNLED-ES-03 provides 50W to 200W power options for different project needs, 120–140 lm/W luminous efficiency, IP66 waterproof grade, PF 0.98 and die-cast aluminum alloy + PC housing. It is suitable for cost-sensitive outdoor lighting projects, bulk procurement, B2B project support and factory-direct quotation discussions.
Factory Support
Factory Support for B2B LED Street Light Projects
ZANNOE supports factory-direct supply, OEM / ODM discussion, bulk order quotation, product selection support, datasheet support and document checking for project evaluation. The service is suitable for distributors, contractors and engineering buyers who need practical outdoor LED road lighting solutions.
FAQ
FAQ
What applications is ZNLED-ES-03 suitable for?
ZNLED-ES-03 is suitable for streets, gardens, courtyards, communities, parking areas, parks, roads and general outdoor project lighting. It is positioned for B2B project selection and bulk procurement discussions.
What power options are available for ZNLED-ES-03?
The available power options are 50W, 100W, 150W and 200W. Straight arm and rotating arm versions can be selected according to installation requirements.
What is the luminous efficiency of this LED street light?
The luminous efficiency is 120–140 lm/W. This supports practical outdoor lighting output for economical LED street light projects.
What LED chip does ZNLED-ES-03 use?
ZNLED-ES-03 uses Bridgelux SMD2835 / SMD3030 according to the current factory specification. If final order requires chip brand confirmation, please confirm before quotation.
What is the difference between the straight arm and rotating arm version?
The straight arm version is suitable for standard installation layouts. The rotating arm version supports more flexible installation angle adjustment for project requirements.
Can this LED street light be used for communities, courtyards and parking areas?
Yes, it can be used for community roads, courtyards, parking areas and other general outdoor lighting projects. Final selection should consider pole height, area size, brightness target and quantity.
Can ZANNOE support OEM or ODM orders?
OEM and ODM support can be discussed based on order quantity, configuration and project requirements. ZANNOE can also support model selection and datasheet review for B2B buyers.
What information should I provide for a project quotation?
Please provide project location, application area, pole height, quantity, power requirement and target budget. These details help ZANNOE recommend suitable LED street light solutions and prepare a project quotation.
Need a Cost-Effective LED Street Light Solution?
Send us your project location, application area, pole height, quantity, power requirement and target budget. ZANNOE will help recommend suitable LED street light solutions and prepare a quotation for your project.
