Modular LED Design
Modular LED structure supports flexible power selection for different road lighting projects.

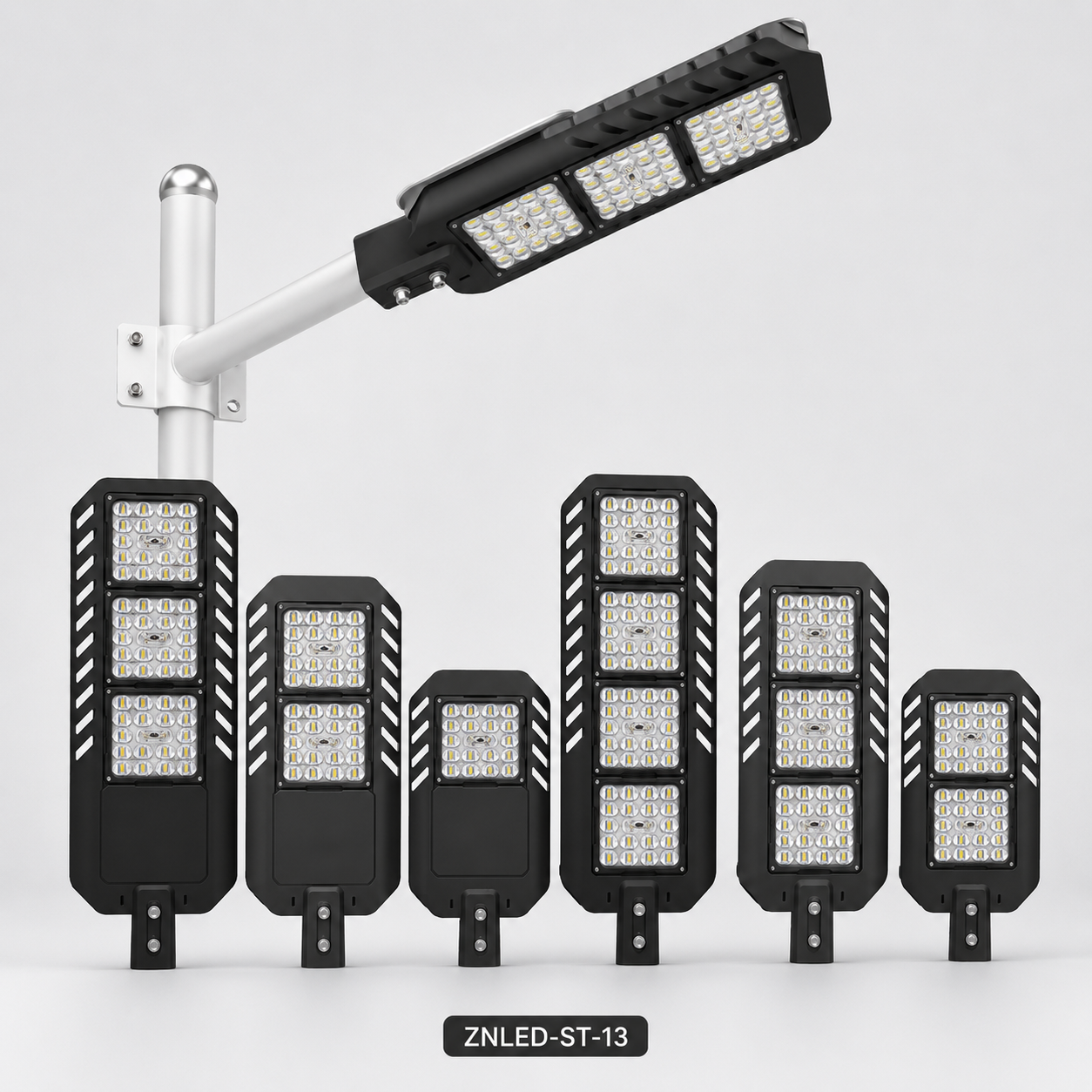

ZNLED-ST-13 LED Street Light
Modular LED Street Light for Roads, Highways, Gardens and Outdoor Engineering Projects
ZNLED-ST-13 is a modular LED street light designed for road lighting, highway lighting, garden lighting, courtyard lighting and outdoor engineering projects. With SMD 7070 LED chips, die-cast aluminum housing, IP65 protection and high-efficiency light output, it provides reliable illumination for municipal and commercial lighting applications.
120W / 240W / 320W Options
SMD 7070 LED Chips
160-180 lm/W Luminous Efficiency
IP65 Waterproof
Die-cast Aluminum Housing
5 Years Warranty
Product Overview
Product Overview
ZNLED-ST-13 is an engineering LED street light designed for outdoor road and project lighting. The modular lamp body, SMD 7070 LED chips, die-cast aluminum housing and heat dissipation fin structure support stable lighting performance for highways, roads, gardens, streets, courtyards and community areas.
SMD 7070 LED Chips
High-brightness SMD 7070 LED chips provide efficient and stable light output.
Die-cast Aluminum Housing
Durable die-cast aluminum housing improves heat dissipation and outdoor reliability.
Engineering Lighting Use
Suitable for roads, highways, gardens, streets, courtyards and communities.
Product Features
Product Features
Core features for road lighting projects, wholesale inquiries and municipal engineering selection.
SMD 7070 LED Chips
High-brightness SMD 7070 LED chips for stable outdoor lighting performance.
160-180 lm/W Luminous Efficiency
Efficient light output for road lighting and outdoor engineering projects.
IP65 Waterproof
Designed for outdoor environments and daily weather conditions.
Die-cast Aluminum Housing
Durable housing structure with good heat dissipation performance.
Heat Dissipation Fin Design
Optimized fin cooling structure helps improve thermal management.
Glass Lens
High transmittance glass lens supports uniform and bright light output.
Snap-on Back Cover
Easy installation and maintenance with practical tool-saving structure.
5 Years Warranty
Suitable for project orders and long-term outdoor lighting applications.

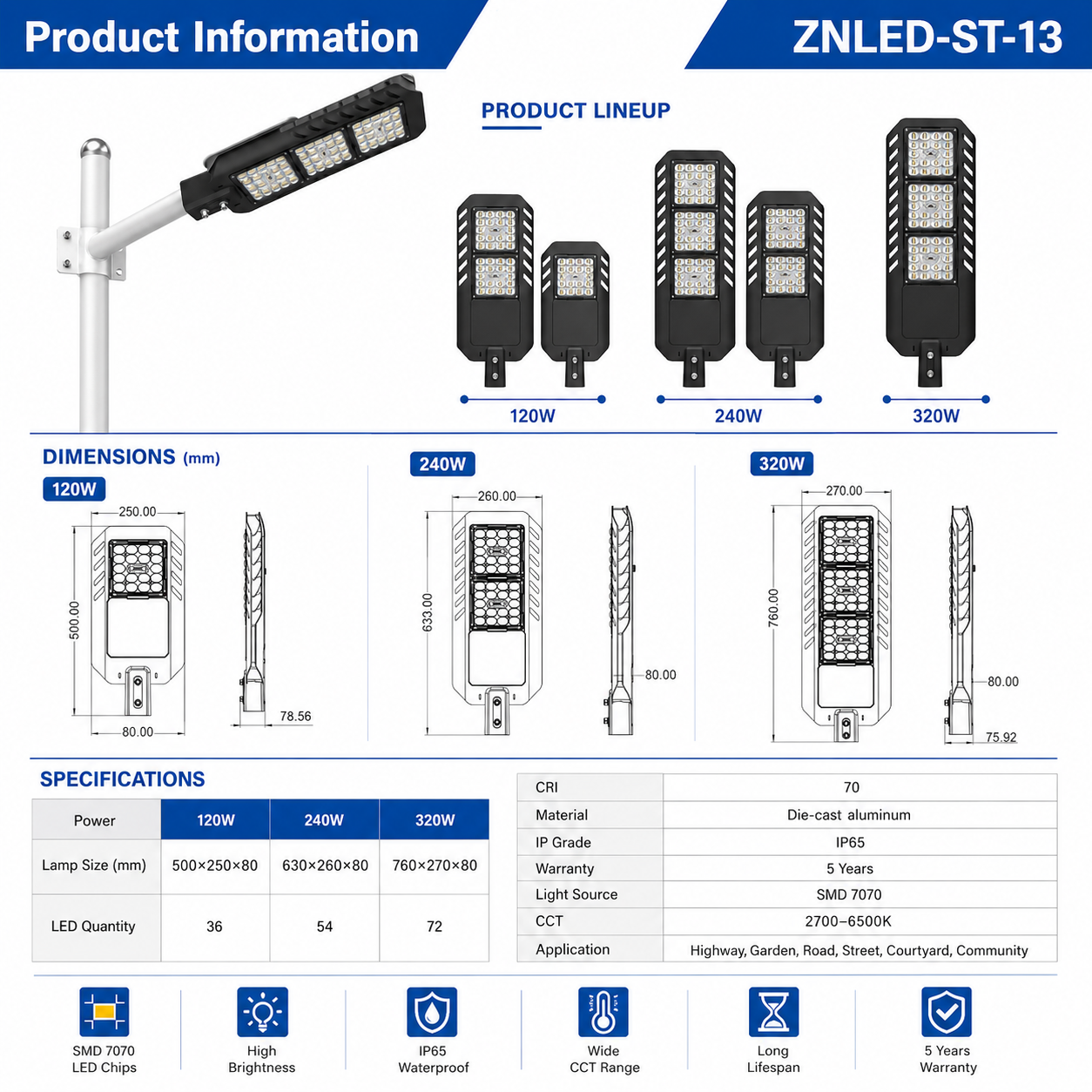

Product Parameters
Technical Specifications
HTML specification table for ZNLED-ST-13. The table below uses the confirmed parameters for page content and indexing.
| Specification | 120W | 240W | 320W |
|---|---|---|---|
| Model | ZNLED-ST-13 | ZNLED-ST-13 | ZNLED-ST-13 |
| Power | 120W | 240W | 320W |
| Lamp Size | 500 x 250 x 80 mm | 630 x 260 x 80 mm | 760 x 270 x 80 mm |
| LED Chips | SMD 7070 / 36PCS | SMD 7070 / 54PCS | SMD 7070 / 72PCS |
| Luminous Efficiency | 160-180 lm/W | 160-180 lm/W | 160-180 lm/W |
| Material | Die-cast Aluminum | Die-cast Aluminum | Die-cast Aluminum |
| Net Weight | 4.2 KG | 6 KG | 8.5 KG |
| CRI | Ra>70 | Ra>70 | Ra>70 |
| Input Voltage | AC100-277V | AC100-277V | AC100-277V |
| IP Grade | IP65 | IP65 | IP65 |
| Lifetime | >50000 Hours | >50000 Hours | >50000 Hours |
| Light Source | SMD 7070 | SMD 7070 | SMD 7070 |
| CCT | 2700-6500K | 2700-6500K | 2700-6500K |
| Warranty | 5 Years | 5 Years | 5 Years |
| Application | Highway, Garden, Road, Street, Courtyard, Community | Highway, Garden, Road, Street, Courtyard, Community | Highway, Garden, Road, Street, Courtyard, Community |

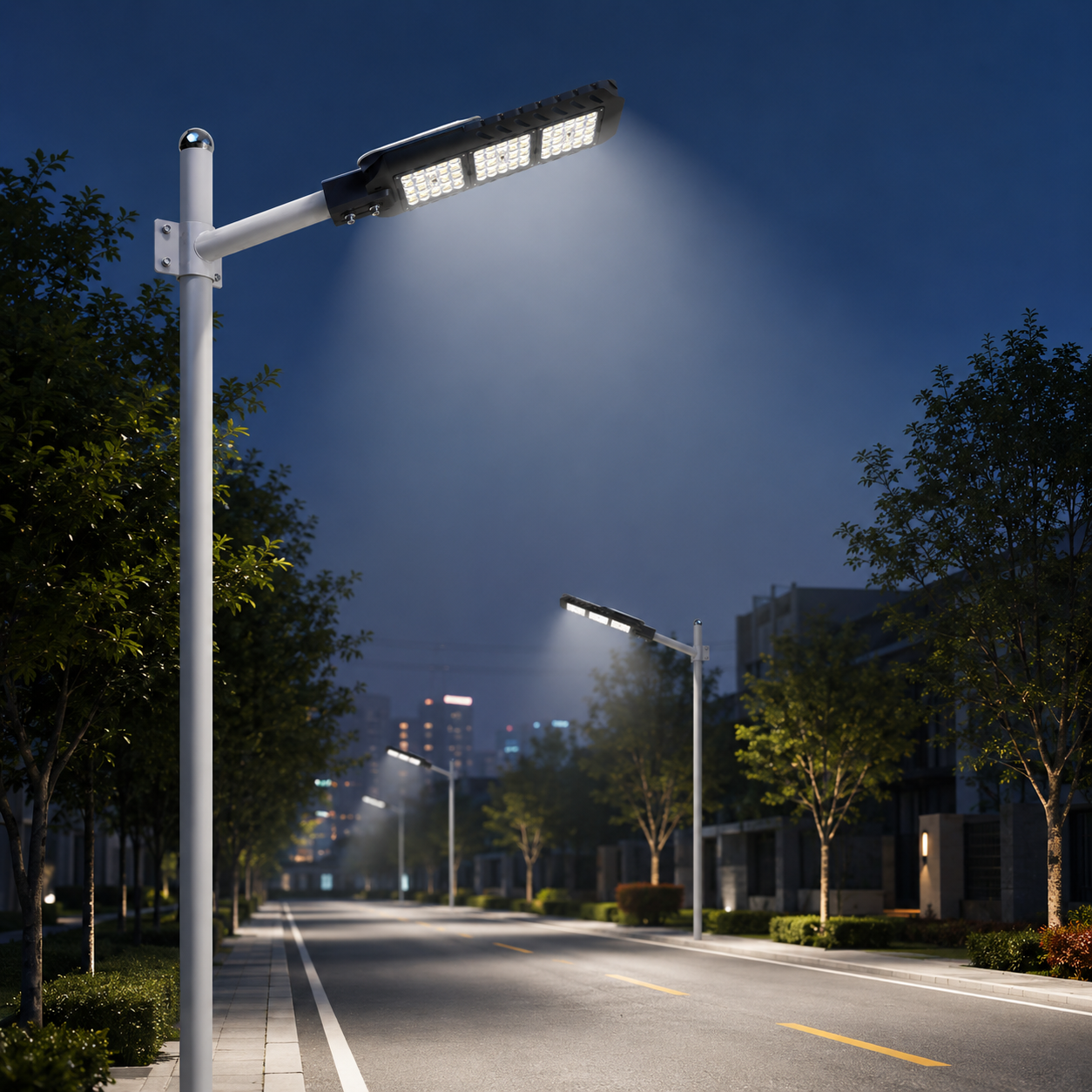

Outdoor Applications
Application Scenarios
ZNLED-ST-13 LED street light is suitable for outdoor lighting applications such as highways, urban roads, garden roads, streets, courtyards, communities, parks, industrial areas and public outdoor spaces.

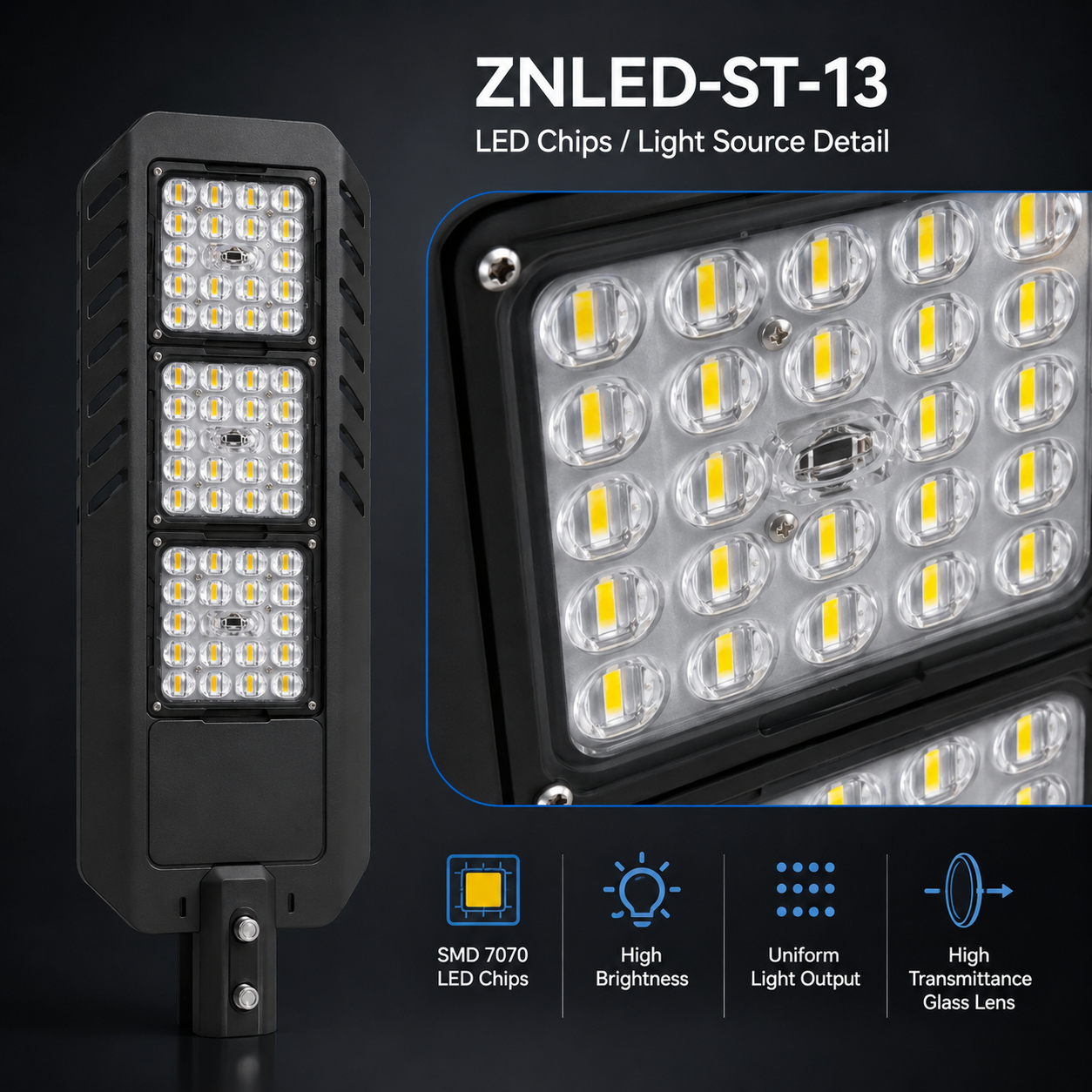

LED Chips Detail
SMD 7070 LED Chips
ZNLED-ST-13 uses SMD 7070 LED chips for high-brightness and stable outdoor lighting performance. The modular LED design supports clear light output and reliable illumination for road lighting projects.
Product Structure
Engineering Product Features
ZNLED-ST-13 is designed with practical details for project lighting use, including glass lens, snap-on back cover, heat dissipation fin design and die-cast aluminum housing.
Heat Dissipation
Heat Dissipation Fin Design
The heat dissipation fin structure improves cooling performance and helps maintain stable operation during long-time outdoor lighting use.

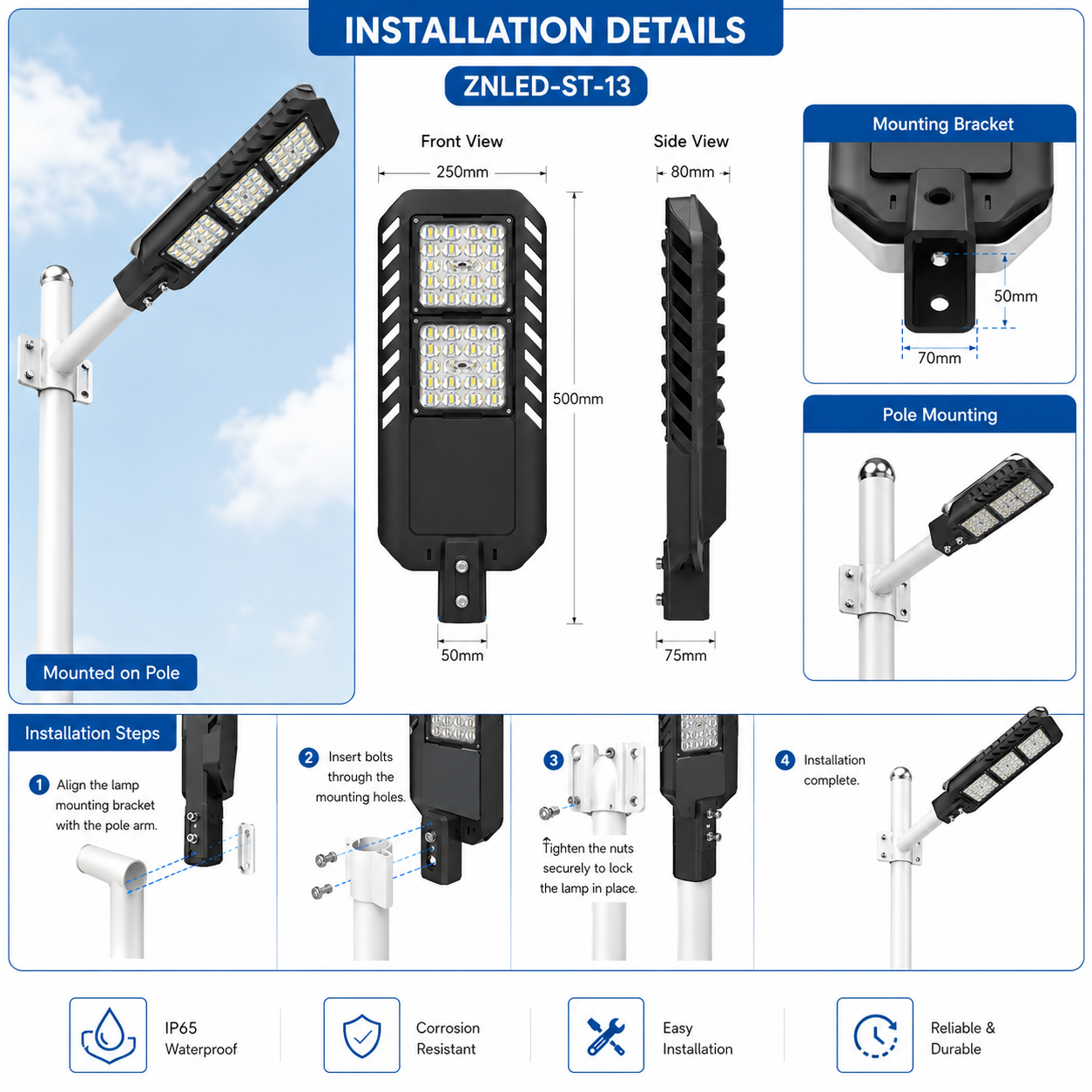

Installation
Installation & Mounting
ZNLED-ST-13 supports pole-mounted installation for road lighting and outdoor project applications. The mounting structure is suitable for common street light poles and engineering installation requirements.
Factory Supply
Factory Production & Bulk Supply
ZANNOE supports LED street light production, assembly and bulk supply for outdoor lighting projects. Factory production and bulk goods images help buyers understand production capacity and project supply ability.

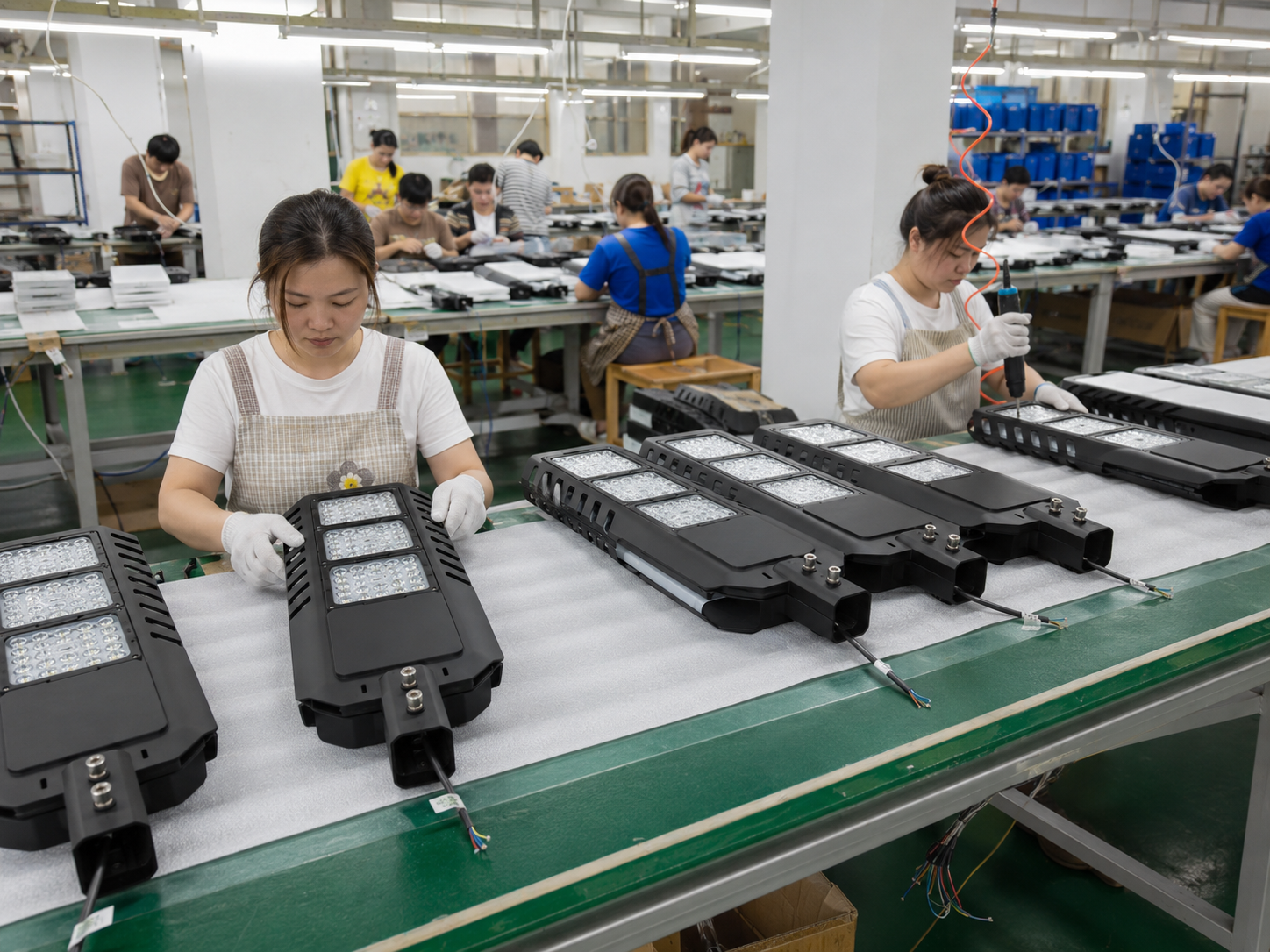

Assembly Line

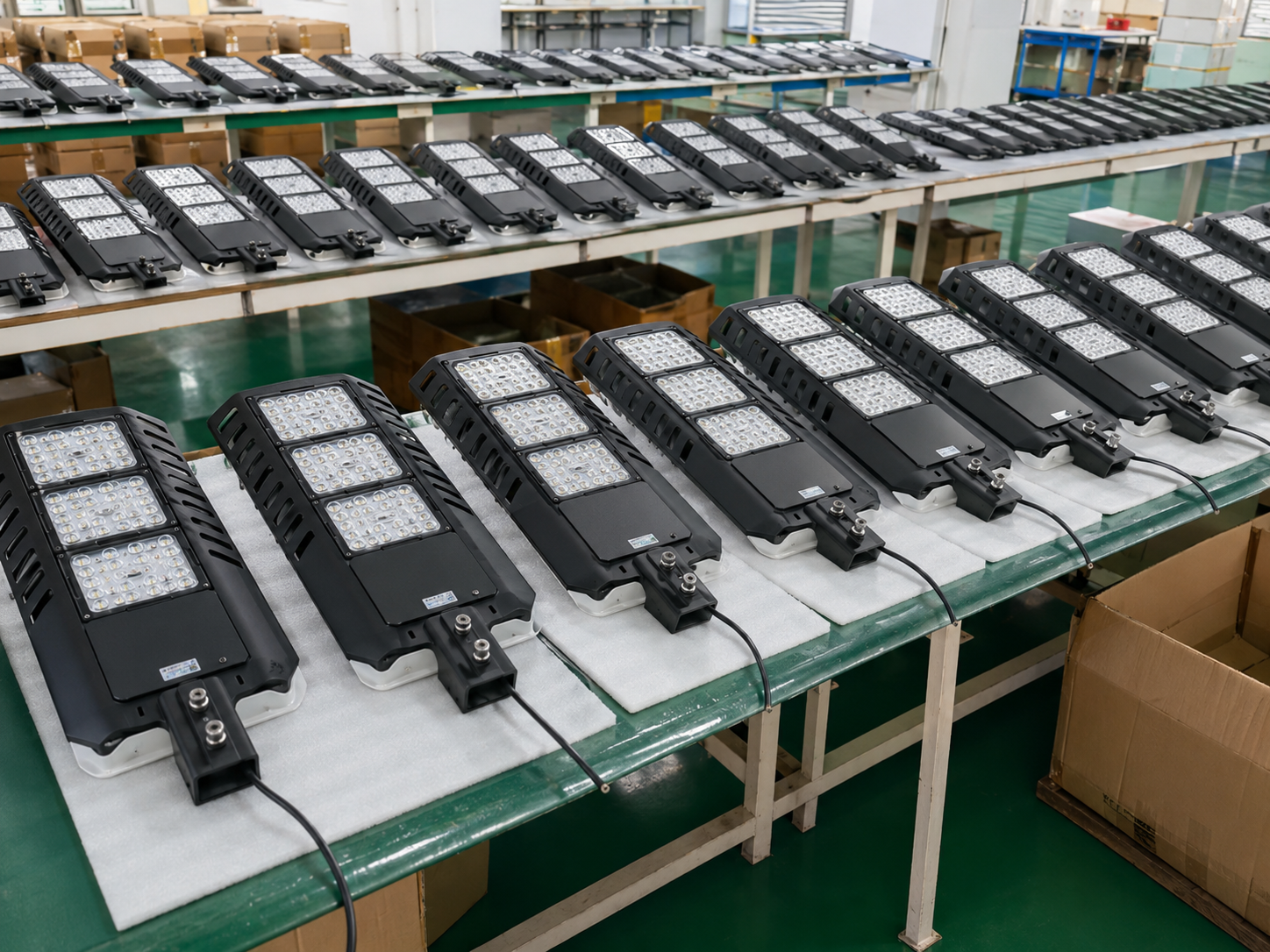

Bulk Goods Preparation
ZANNOE Supply Support
Why Choose ZANNOE LED Street Light
Factory Supply
Factory supply for LED lighting products.
B2B Project Use
Suitable for B2B wholesale and project use.
OEM / ODM Support
Support OEM / ODM requirements for suitable orders.
Road Lighting Solutions
Engineering lighting solutions for roads and outdoor projects.
Selection Support
Professional product selection and inquiry support.
Product FAQ
FAQ
Q1: What is the model of this LED street light?
A1: The model is ZNLED-ST-13.
Q2: What power options are available?
A2: The available power options include 120W, 240W and 320W.
Q3: What LED chip does this model use?
A3: This model uses SMD 7070 LED chips.
Q4: What is the luminous efficiency?
A4: The luminous efficiency is 160-180 lm/W.
Q5: What is the waterproof rating?
A5: The waterproof rating is IP65.
Q6: What is the input voltage?
A6: The input voltage is AC100-277V.
Q7: What applications is ZNLED-ST-13 suitable for?
A7: It is suitable for highways, gardens, roads, streets, courtyards, communities and outdoor engineering lighting projects.
Q8: What is the warranty?
A8: The warranty is 5 years.
Need ZNLED-ST-13 LED Street Light for Your Project?
Contact ZANNOE to get product details, project support and the latest quotation.
